Wdxf-b flat swirl tuyere

Wdxf-b flat swirl tuyere

Purpose and characteristics:

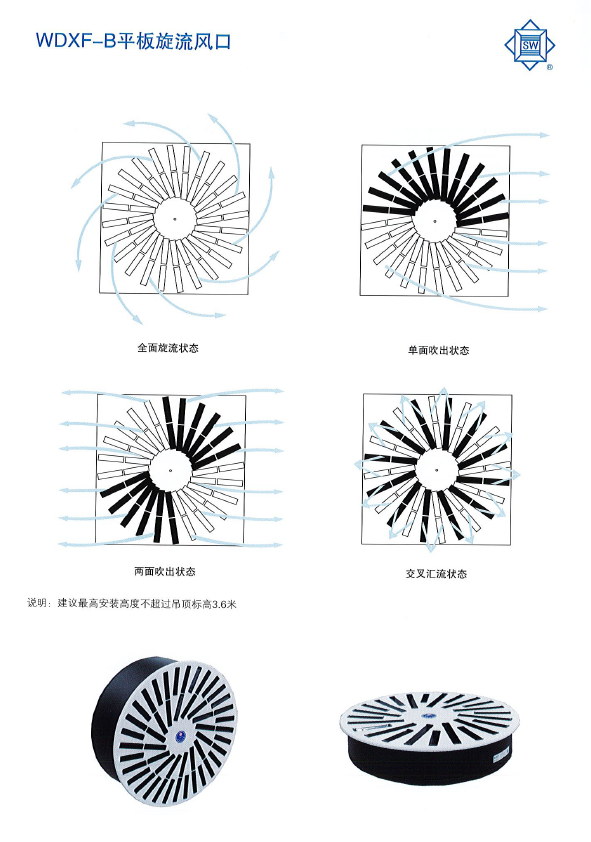

The blade is made of ABS engineering plastics, with anti condensation function. It can be disassembled to adjust the air direction. When supplying hot air in winter, the air direction of each blade is symmetrical, so that the two air streams converge, so as to achieve a longer air supply distance. And there are a variety of air flow states for users to choose to adjust.

Explain:

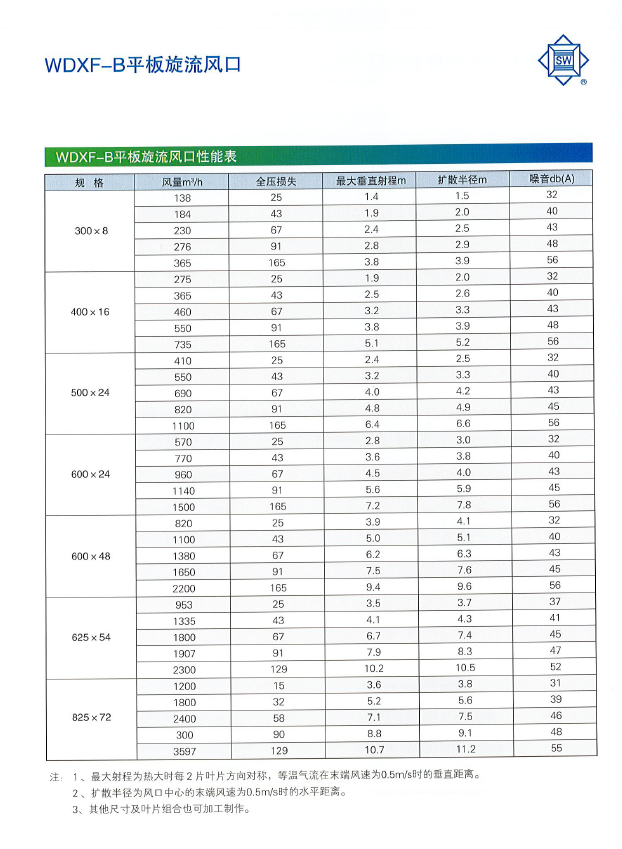

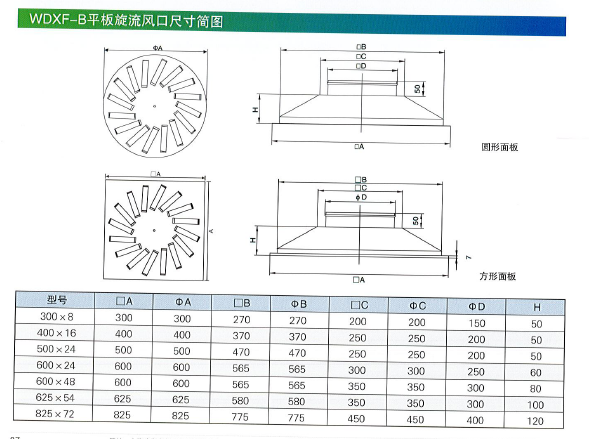

The specific specifications are 300 * 8, 400 * 16, 500 * 24, 600 * 24, 600 * 48, 625 * 54, 825 * 72. For the specific blade number, we can calculate it according to the customer's needs. Optional accessories are plenum.




Purpose and characteristics:

The blade is made of ABS engineering plastics, with anti condensation function. It can be disassembled to adjust the air direction. When supplying hot air in winter, the air direction of each blade is symmetrical, so that the two air streams converge, so as to achieve a longer air supply distance. And there are a variety of air flow states for users to choose to adjust.

Explain:

The specific specifications are 300 * 8, 400 * 16, 500 * 24, 600 * 24, 600 * 48, 625 * 54, 825 * 72. For the specific blade number, we can calculate it according to the customer's needs. Optional accessories are plenum.
