Low temperature air outlet series

Wdxf-a flat swirl tuyere

Wdxf-a flat swirl tuyere

Purpose and characteristics:

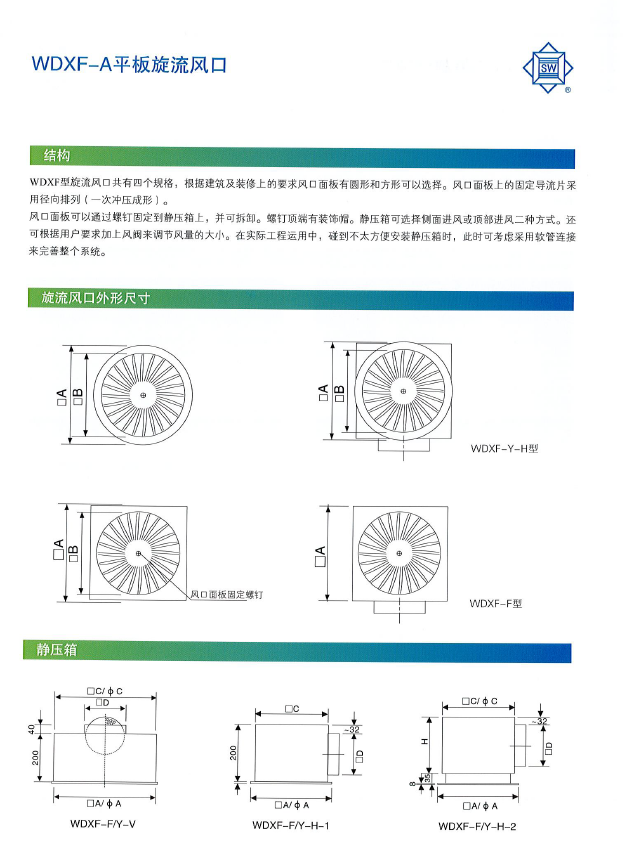

It is composed of a fixed radial array of deflectors, which has the characteristics of large air volume and low noise. The air outlet form is horizontal swirl air, which is rapidly mixed with indoor air, so its temperature and wind speed can be rapidly reduced to achieve the best indoor comfort effect.

Explain:

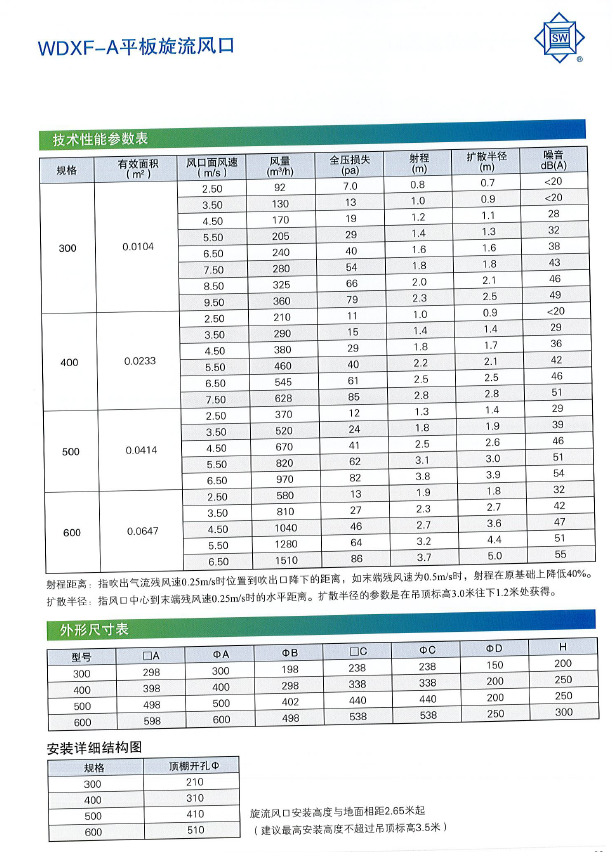

The specific specifications are φ 300, φ 400, φ 500 and φ 600. Optional accessories are plenum.





Purpose and characteristics:

It is composed of a fixed radial array of deflectors, which has the characteristics of large air volume and low noise. The air outlet form is horizontal swirl air, which is rapidly mixed with indoor air, so its temperature and wind speed can be rapidly reduced to achieve the best indoor comfort effect.

Explain:

The specific specifications are φ 300, φ 400, φ 500 and φ 600. Optional accessories are plenum.
