Watcd-p temperature sensing disc diffuser

Watcd-p temperature sensing disc diffuser

Purpose and characteristics:


Due to the small amount of induced air, it is not easy to slow down the air flow, so a relatively long range can be obtained. At the same time, due to the installation of automatic temperature sensing device, the air flow state can be automatically changed in winter and summer. When blowing cold air, the air distribution of the diffuser is in the attached state, while when blowing hot air, the inner core of the diffuser is lifted, and the air flow is in the vertical down state, so as to achieve a longer air supply distance. Without power supply, the temperature sensing actuator has the advantages of energy saving, environmental protection, maintenance free, stable performance, intelligent and so on.


Explanation:

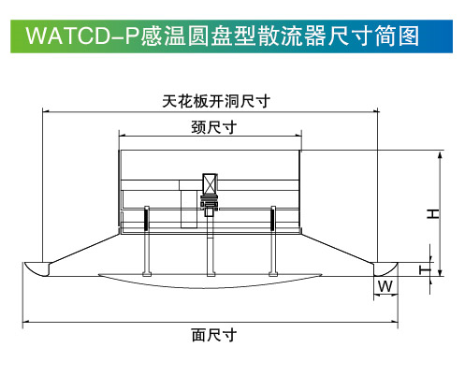

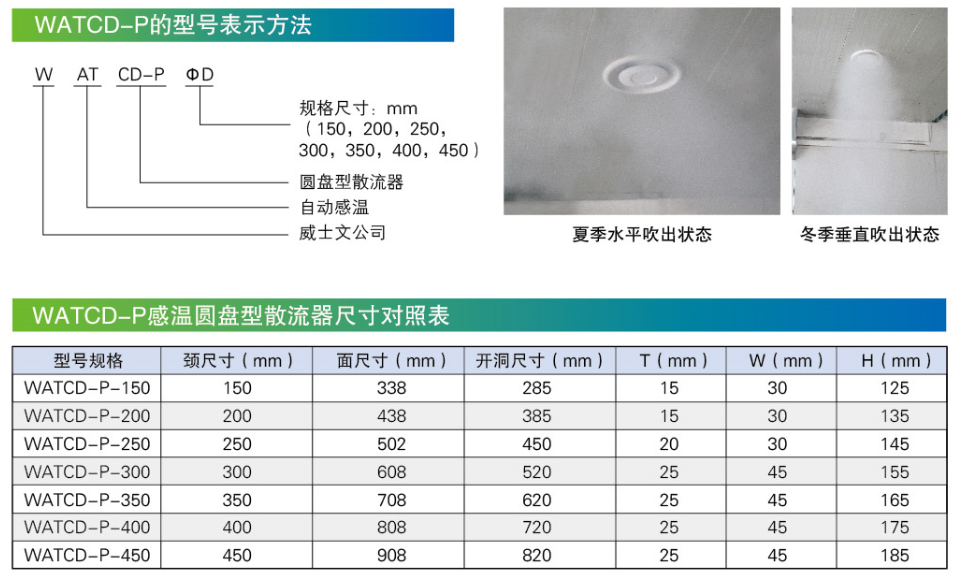

Specifications are Φ L50, φ 200, φ 250, φ 300, φ 350, φ 400 and φ 450. Optional accessories are butterfly valves. Customized form: manual type, temperature sensing type.

Purpose and characteristics:


Due to the small amount of induced air, it is not easy to slow down the air flow, so a relatively long range can be obtained. At the same time, due to the installation of automatic temperature sensing device, the air flow state can be automatically changed in winter and summer. When blowing cold air, the air distribution of the diffuser is in the attached state, while when blowing hot air, the inner core of the diffuser is lifted, and the air flow is in the vertical down state, so as to achieve a longer air supply distance. Without power supply, the temperature sensing actuator has the advantages of energy saving, environmental protection, maintenance free, stable performance, intelligent and so on.


Explanation:


Specifications are Φ L50, φ 200, φ 250, φ 300, φ 350, φ 400 and φ 450. Optional accessories are butterfly valves. Customized form: manual type, temperature sensing type.
